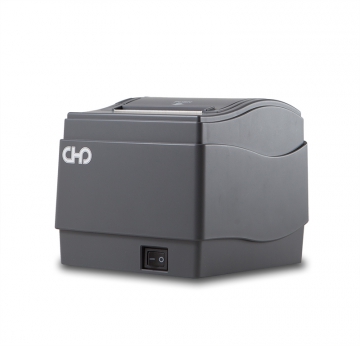

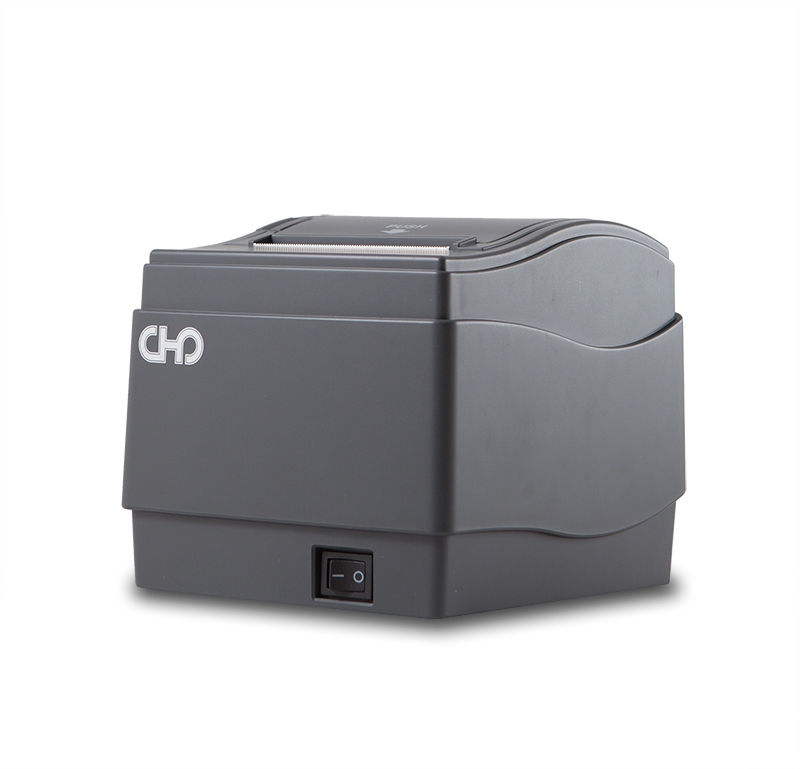

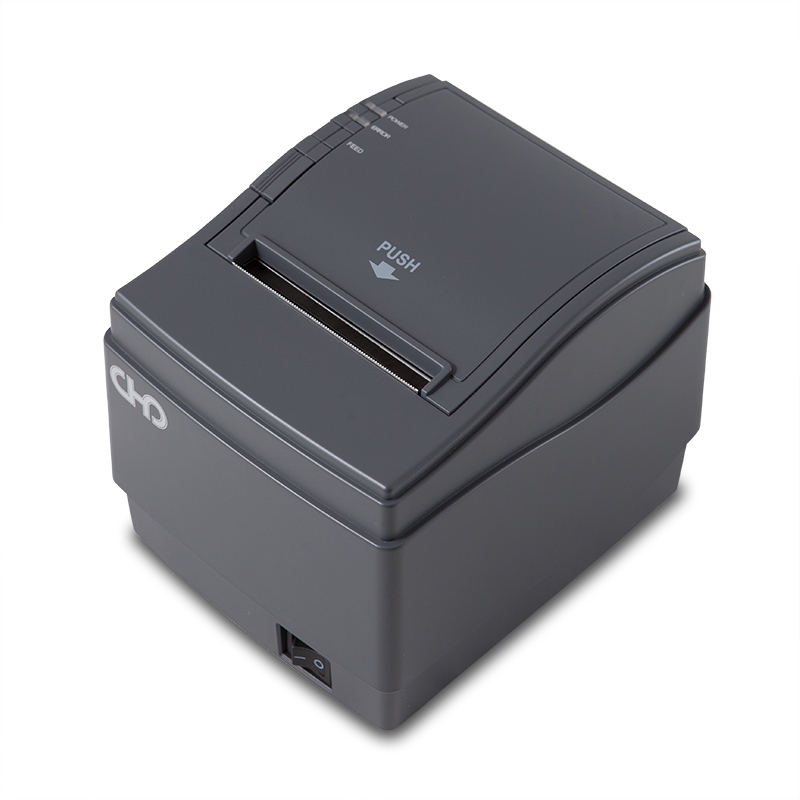

CHD TH-305N

Thermal printer
  • Fast - print speed up to 200mm/s
  • Reliability -  printer head life up to 100km or more
  • Connections: USB, RS232 and Ethernet
  • Drivers - Connect to any program with Microsoft Windows drivers
Physical parameters
Dimensions 130 (W) x 160 (L) x 130 (H) mm
Weight 880g
Case Plastic
Case colour Iron grey
Power 24 VDC
Operating tempetature 0C - 40C
Operating humidity 80% max
Printer
Printer Direct thermal
Resolution 8 dots/mm
Print width 54 mm
Paper size 57 mm
Print speed 200 mm/s
Cutter Full cut or partial cut
Full cutter cycle 0.5s max
Printer head life 100 million pulses or >100 km
Sensors
Indicators Paper end, open printer cover

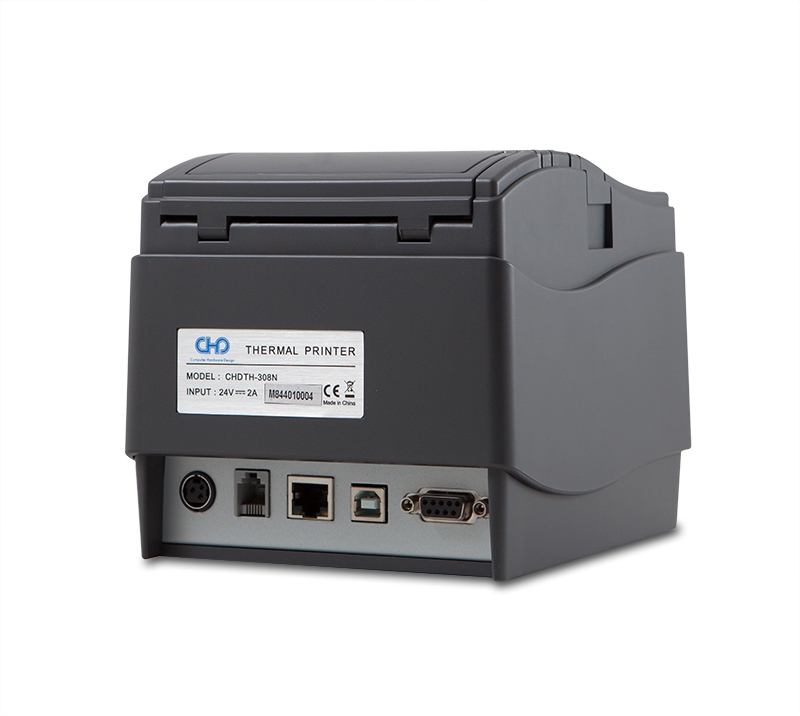

Interface RS232, USB and Ethernet
Data transfer speed 115 kbps (RS232)
