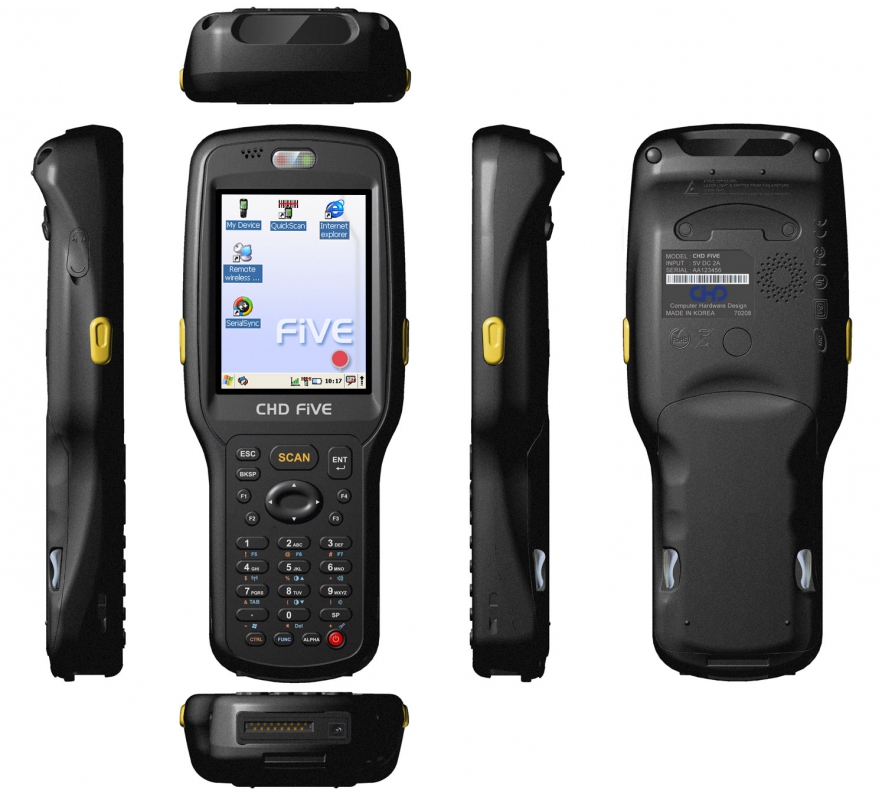

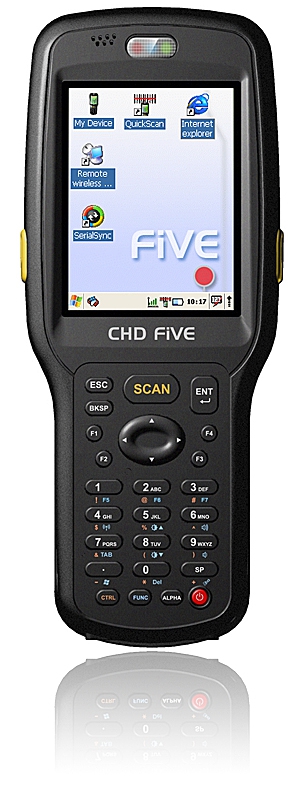

CHD Five

Mobile computer

Intel® X-Scale PXA300 624MHz, Windows CE.NET
The CHD FiVE is mobile computer device, combining a compact, rugged form factor with the flexibility of Microsoft’s CE .NET 5.0 operating system and Intel® X-Scale PXA300 624MHz Processor. The CHD FiVE is designed for retail, warehousing and logistics applications, where maximum performance and durability is required in a compact handheld device.

The Most Advanced Ergonomic Design for Comfort and Scan Intensive Applications
The user-tested ergonomic design of CHD FiVE has rendered a lightweight and uncommonly well-balanced device that reduces stress and fatigue during extended work sessions. Its sculpted back case is shaped to comfortably adjust to any hand size, and the ergonomically positioned side scan buttons on both sides, provide the most comfort to use for either right or left-handed users.

Comfort and Easy to Use with 30 Degree Bended Scanning Direction
For the first time in the industry CHD FiVE has a unique design concept for scan engine positioning. The scan engine positioned in 30 degree bended scanning angle pointed downwards, gives the user maximum comfort and productivity for scanning applications. Its superior design concept helps to facilitate and increase workforce satisfaction inside the retail store, on the loading dock or on a delivery route.

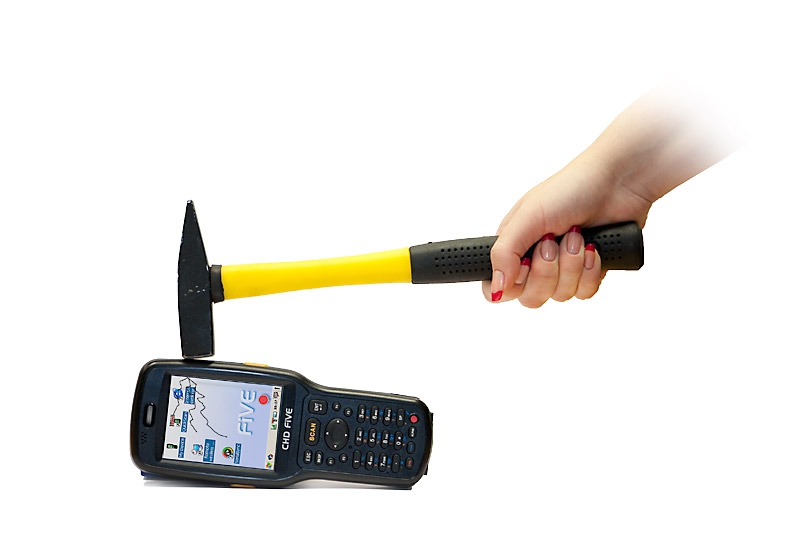

Outstanding Durability
CHD FiVE is designed from the ground up for rugged applications. With its IP64 sealing, withstand of 1.5m repeated drops to concrete, and wide operating temperature range, the CHD FiVE stands up to most demanding application environments.

Physical parameters
Dimensions 200 mm x 78 mm x 28 mm
Weight 360 g
Keys 12 alphanumeric
3 scan
6 function
4 programmable
Navigation key
Keypad backlight Yes
Operating temperature -10°C to +50°C
Storage temperature 5% - 95%
Shock resistance 1.5m repeated drops to concrete
Protection IP64
Indicators LED (3 colors)
Vibration (Vibration motor 12,000rpm 80mA)
Case Plastic
Case colour Black
Sound indicators
Operating system Microsoft WinCE 5.0
CPU Intel® X-Scale PXA300 624MHz
Memory 128MB RAM (SDRAM); 128MB ROM
Display 3.5“, TF, TFT LCD, QVGA (240x320) color with touch
Expansion slot Secure Digital, user accessible, under battery
Barcode scanner
Scanner Symbol SE955
Scan speed 104 scans/s ± 12 scans/s (bi-directional)
Serial RS232
Wireless Wi-Fi 802.11b/g
Bluetooth Bluetooth® IEEE 802.15
Data transfer speed 802.11b - 11MB/s; 802.11g - 54 MB/s
Antenna Integrated
Frequency 2.4 - 2.5 GHz
Transmitter output 10 mW
Battery Li-ion, 2000mAh, rechargeable
Duration Max 8 Hours (depends on battery status)
Standby time Up to 20 days Depends on battery status
Power adaptor 5V 2A, 110/230V
Additional extras
Standart accessories AC/DC power adaptor, stylus pen, hand strap

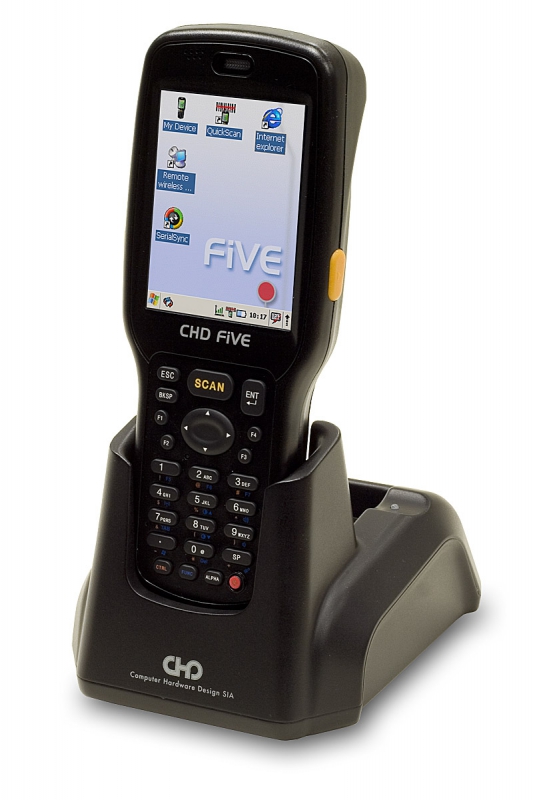

Optional accessories Single-slot USB/RS232 charging cradle with spare battery charger
Data storage SD Card
Sync cable
4 slot battery charger
Auto charger
