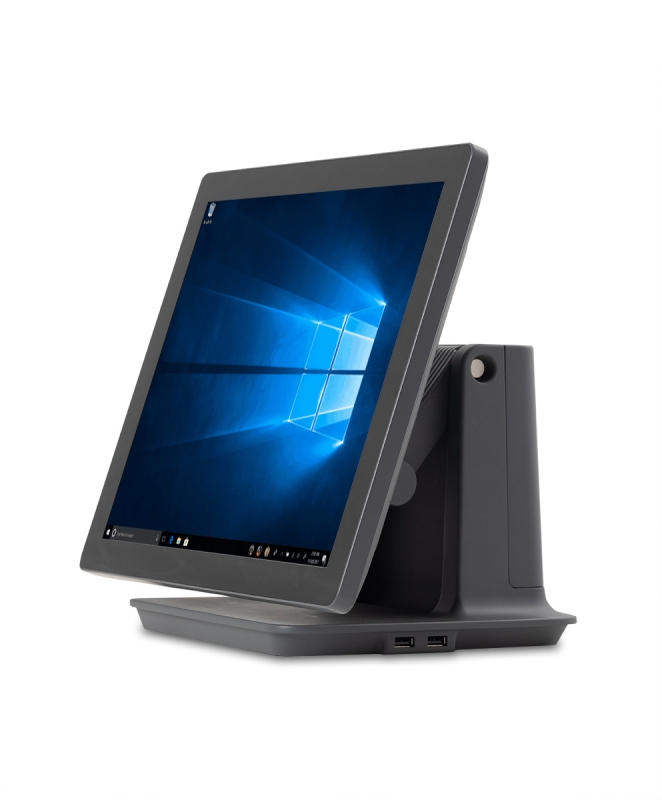

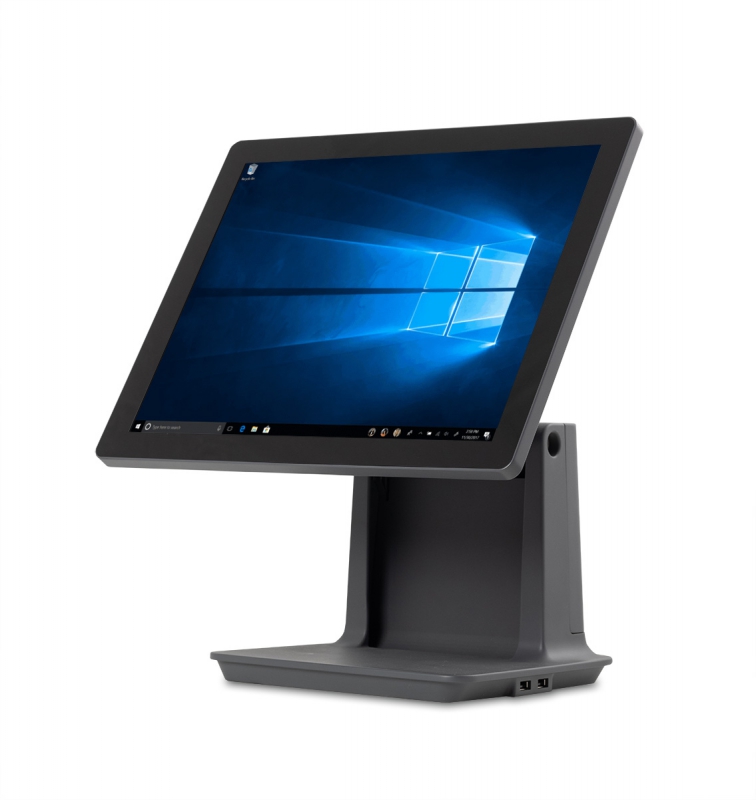

CHD 7830

Performance 15" POS system with i3 CPU
  • 15” LCD display with P-CAP Touch Panel
  • Intel® Core™ i3 7100U
  • Wireless: Wi-Fi/BT built in, 4G/LTE as option

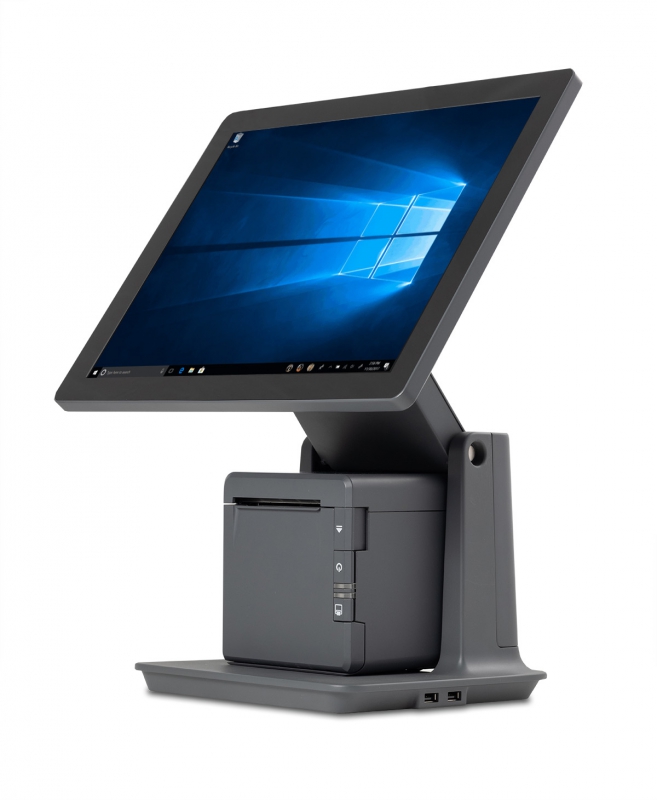

  • Designed to accommodate CHD TH508 printer

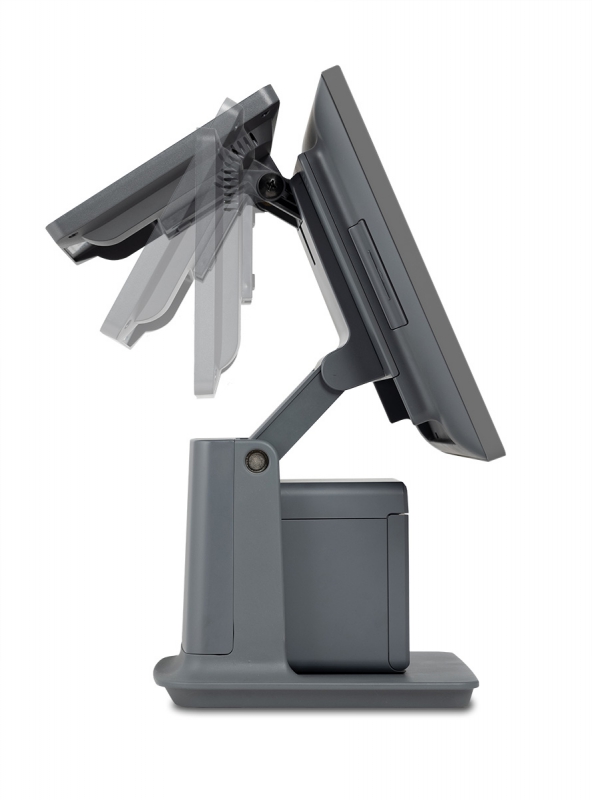

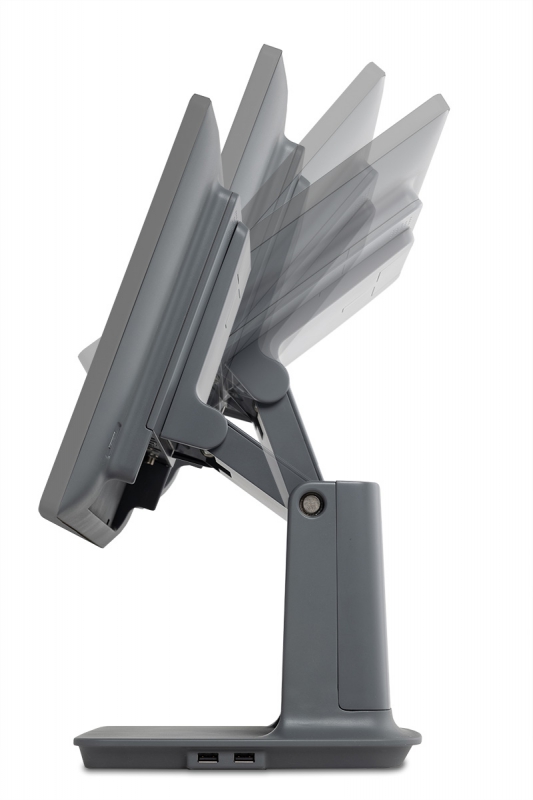

  • Variable display height and angle
  • Robust Aluminum Alloy (die-casting) housing and stand
  • Easy system maintenance
System
Processor Intel® Core™ i3 7100U
Memory 8GB, 2 x DDR4, 2133MHz (1.2V)
Memory extension up to 32GB
Free memory slot 2 x 4GB
Memory device hard drive, 128 GB SSD, expandable
Wi Fi Wi-Fi 802.11 a/b/g/n/ac
Bluetooth Bluetooth 4.0
External I / O
USB ports 6 x USB (4 x USB 3.0, 2 x USB 2.0) + 2 x USB 2.0 quick access ports
Serial port 2 x COM ports DB9 connectors (2 ports with power: 5V or 12V, enabled by BIOS)
LAN 1 x RJ-45 (10/100/1000Mbps Gigabit LAN)
Cash drawer port 1 x RJ-11 (12V/24V)
Display port 1 x HDMI
DC socket 1 x 12V, 1A (enabled in BIOS)
RJ-45 rear 1 x RJ-45 connector on rear for second display
Expansion
Mini PCIe socket half size 1 PCIe/USB2.0 interface, used for Wi-Fi/BT
Mini PCIe socket full size 1 PCIe/USB2.0/SIM interface, used for LTE
M.2 interface 1 x M.2 B-key 2242, 2280 SATA
Power
Power adapter 12V, 5A
System control and monitoring
Button, switch and indicator 1 power button
Physical parameters
Operating temperature 0°C to +45°C
Storage temperature -20°C to +80°C
Operating Humidity 10% to 90% RH non-condensing
Storage Humidity 10% to 90% RH non-condensin
VESA mount 100mm x 100mm VESA mounting hole for panel PC type
Weight 5 kg (w/o PSU)
Dimensions 219 x 222 (base), height: min. 290 / max. 442
Approvals EMC & Safety: FCC, CE, RCM, IMDA (others on the request)
Display
Size 15” LED LCD
Type Projected Capacitive with 10 touch points
Touchscreen
Resolution 1024 x 768
Brightness 300 cd/m²
Tilt adjustment 90°
Software
Sales software Microsoft Windows® 10 Enterprise 2019 LTSC
OS Support Other Windows10 variants, Android, Linux (TBC)
Options
LTE/4G module Category 4, Max 150Mbps (DL)/Max 50Mbps (UL) (option)
Printer CHD TH508 (option) (short PRN cable available)

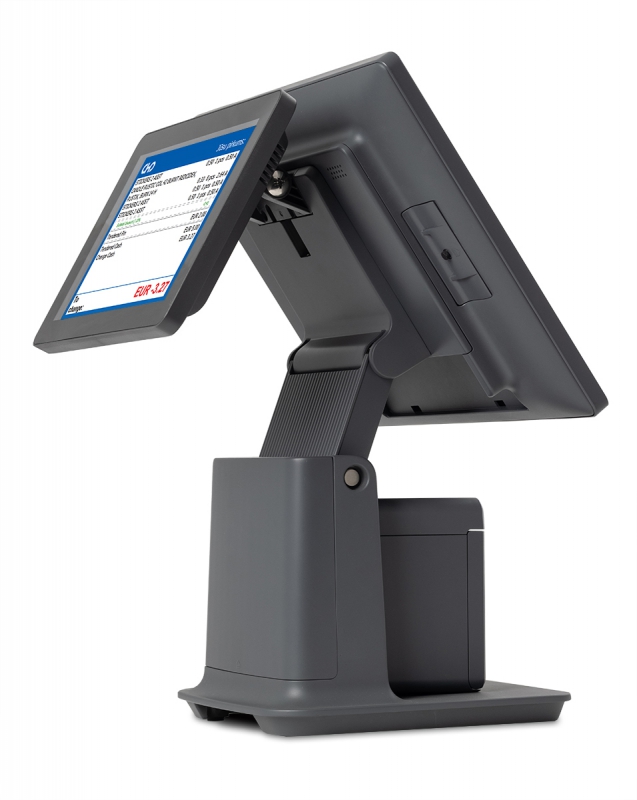

Customer display 5,2" 2x20 LCD with NFC, 10,1’’ or 15’’ LCD display with or without touch (option)
i-button Yes (option)
