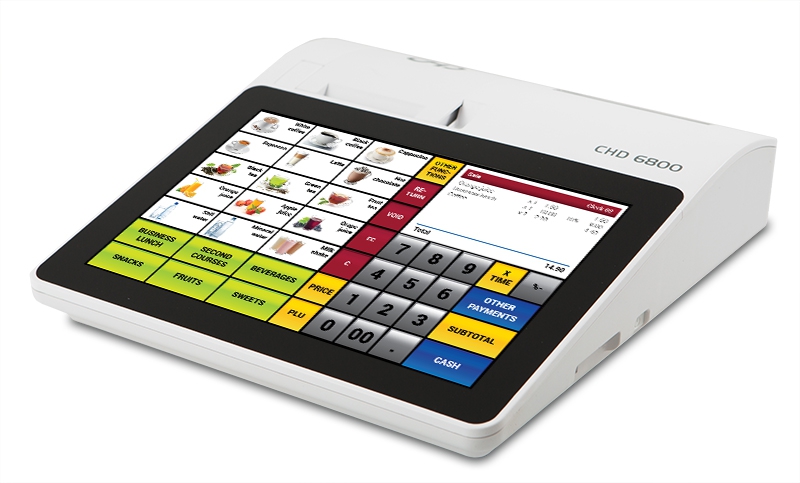

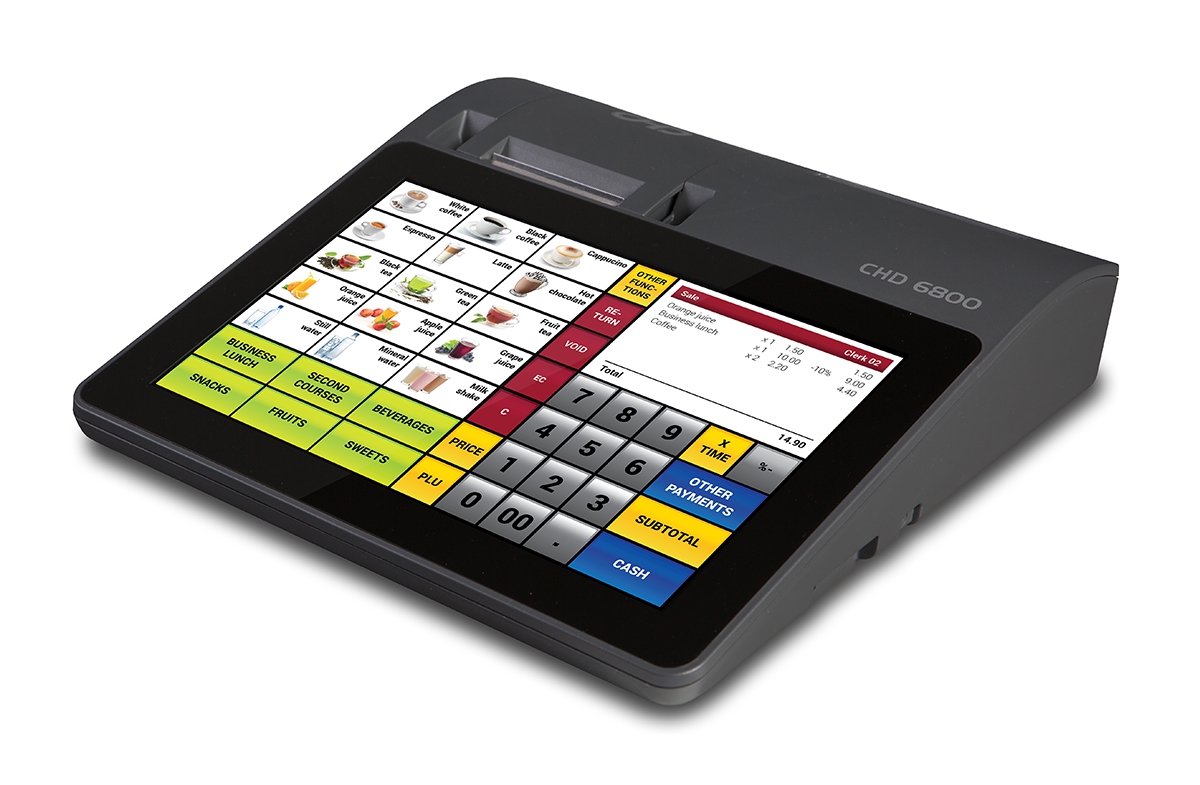

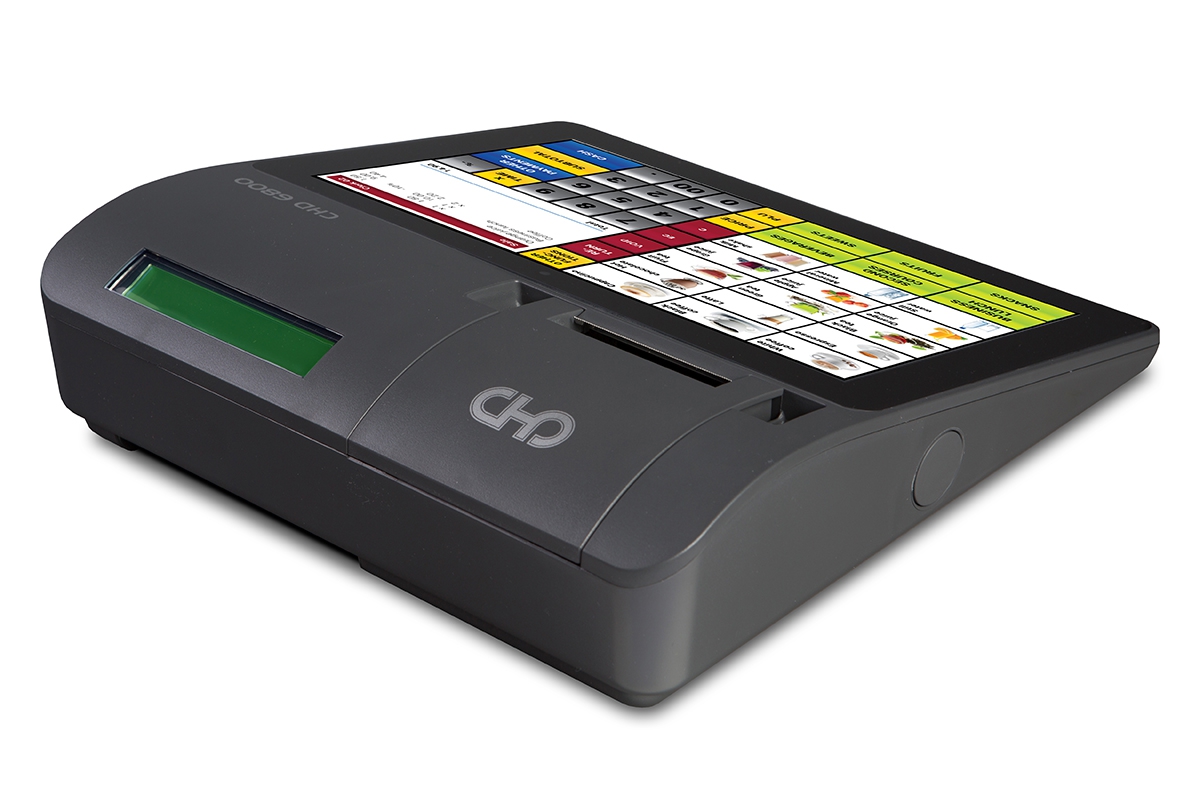

CHD 6800

10.1" True All In One POS System

True All In One CHD 6800 designed and built by professionals for retailers that demand reliability at the sales point:

Reliable hardware:

  • Retail hardened hardware
  • Automotive grade components
  • Life expectancy: 7+ years
  • Designed for 24/7 operations
  • Professional tools: KIOSK MODE, APP LOCKER, IP Printer, QR code printing

Simple Android sales software (“miniPOS”):

  • Easy to use in daily sales operations
  • All traditional cash register features
  • Hospitality features
  • Stylish keybord layouts
  • Set up app from PC
  • Adaptable to various fiscal requirements
  • Own built maintained and supported

Cloud-based inventory management system:

  • Quick and easy implementation
  • Full online integration with CHD 6800
  • Real time business data
  • All sales and purchase data at one place
  • Wide range of reports



Android is a trademark of Google Inc.

System
OS Android 5.1™/Android is a trademark of Google Inc
CPU Cortex-A9 Dual core Lite @1GHz iMX6
CPU Maker Freescale
RAM 1 GB (expandable to 2 GB)
Storage 8 GB on eMMC (expandable to 64 MB)
Wi Fi 802.11 b/g/n
Bluetooth 4.0 BLE
Physical parameters
Modular / one-piece All in one
Screen IPS 10.1" 1280 x 800 Landscape
Printer Thermal
Weight 1.8 kg
Dimensions 270 (W) x 270 (L) x 80 (H) mm
RS232 external 2 (1 port with +5V power supply) at back panel
Cash drawer port 1 (RJ11), 9V
USB host 3 (2 USB on back panel, 1 USB at side)
USB OTG 1 (at side)
SD slot Yes (supports up to 32 GB SD cards)
LAN Gigabit Ethernet
HDMI Supports dual display mode
Audio Line in/out
VESA mount Standard VESA 100
Display
Touch Capacitive, multitouch, 10 points
Display design True Flat

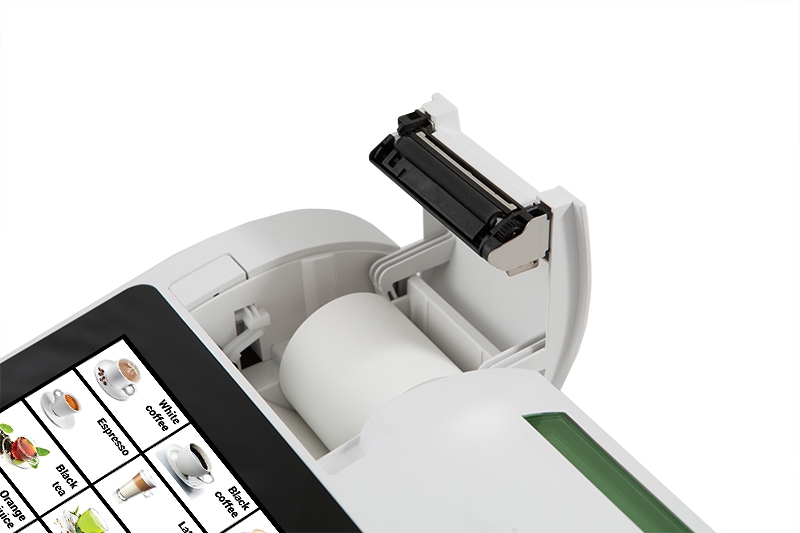

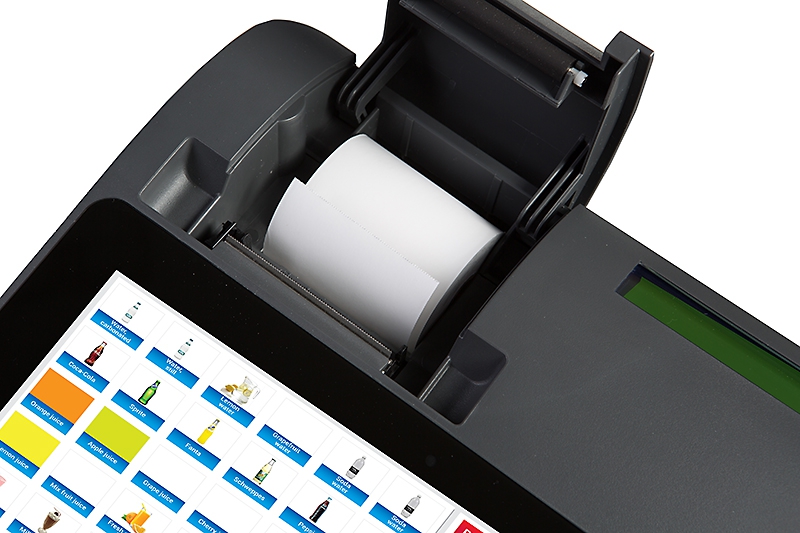

Printer
Printing method Thermal
Paper width 58 mm
Print speed up to 100 mm/s
Cutter Auto cutter
Paper roll change method Easy-load
Software
Sales software CHD mini POS
Cloud solution Yes
Options
Fiscal Factory only
Printer Dealer option /58 mm printer with manual cutter
Operation battery Dealer option / 6000 mAh

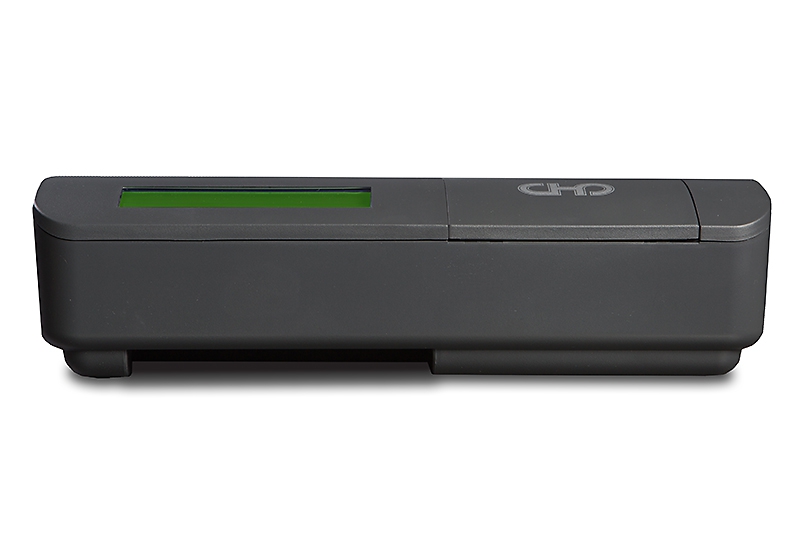

Customer display Dealer option / Integrated 240x48 dot display
i-button Dealer option
NFC Factory only
Cash drawer Dealer option
3G (internal) Factory only
mSATA Factory only
