CHD 3050U

Electronic Cash Register

The entry level, small size cash register CHD 3050 is created for small to medium size retail locations. Despite its compact size this cash register provides the same functionality as a standard cash register and even more - it has a graphic LCD screen, PC communication options, easy receipt loading system, an optional UV light for checking banknotes and electronic journal.

­SYSTEM OPTIONS SETTINGS

  • Fiscal / Non-fiscal
  • Fiscal printer function
  • Configurable keyboard layout
  • Instore barcode format setting
  • Macro function setting
  • Service reminder on display and on report
ECR parameters
PLU count 5000
PLU groups 100
Departments 5
Taxes 9
Payments 3
Currencies 5
Users 20
Graphical logo
Reports Financial, Departments, PLU, Clerk, Hourly, In-Drawer
Electronic journal
Physical parameters
Dimensions 220 (P) x 280 (G) x 118 (A)
Weight 1.6kg
Case Plastic
Operation temp. 0ºC līdz +45ºC
Humidity 10% - 90%
Keyboard Stroke
Number of keys 36
Sound indicators Yes
Operator display Graphic, 128x64 dot LCM with backlight, blue
RS232 Interface 2x
USB
Ethernet Yes - additional option
UV detector Yes
Cash drawer port
Power supply 9V
Printer
Printer type Thermal
Printer reliability 50km
Print speed 60mm/s
Number of columns 32
Paper roll 57 mm, Ø50mm
Printer width 58mm

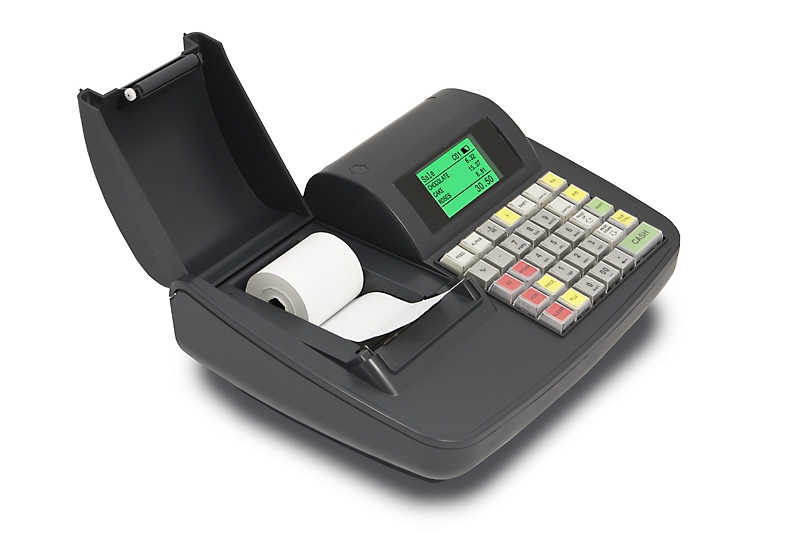

Paper roll change method easy-load
Thermal paper rolls 57mmx45m
Battery
Additional battery
Battery type 1100mAh or 2100mAh
