CHD 7A with miniPOS

Mobile POS system

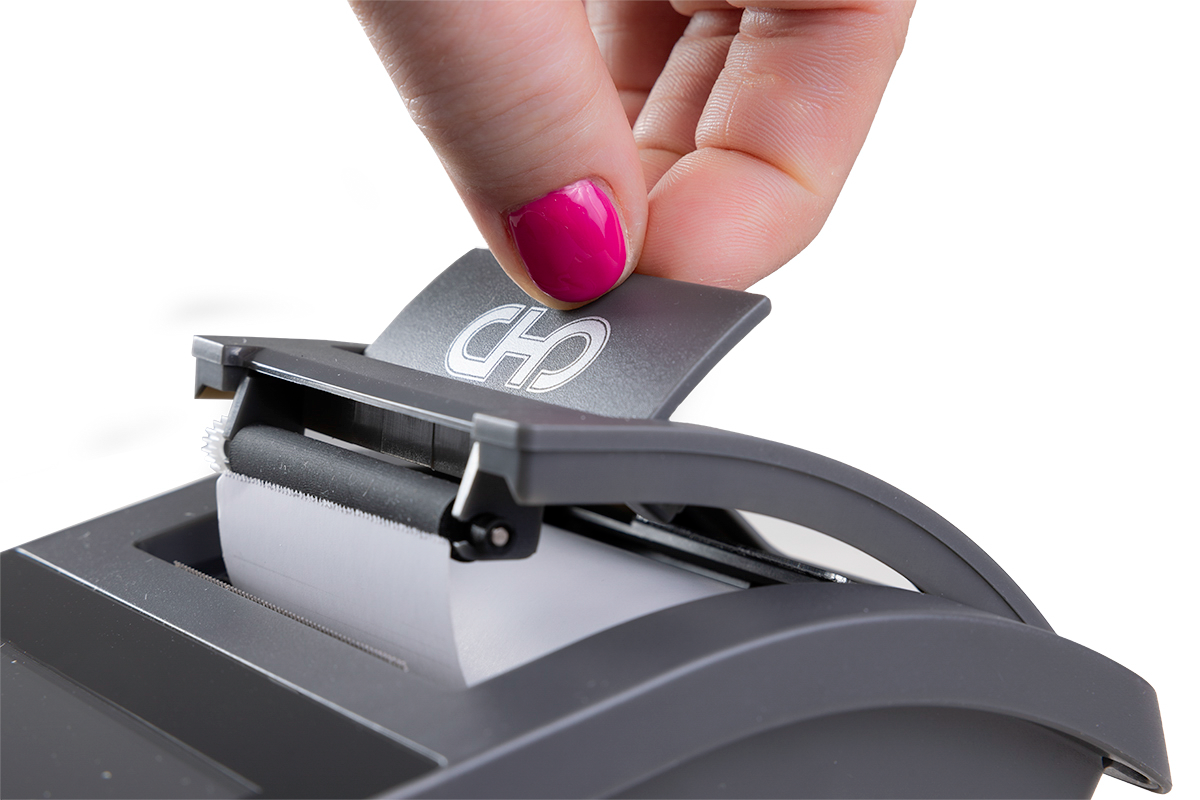

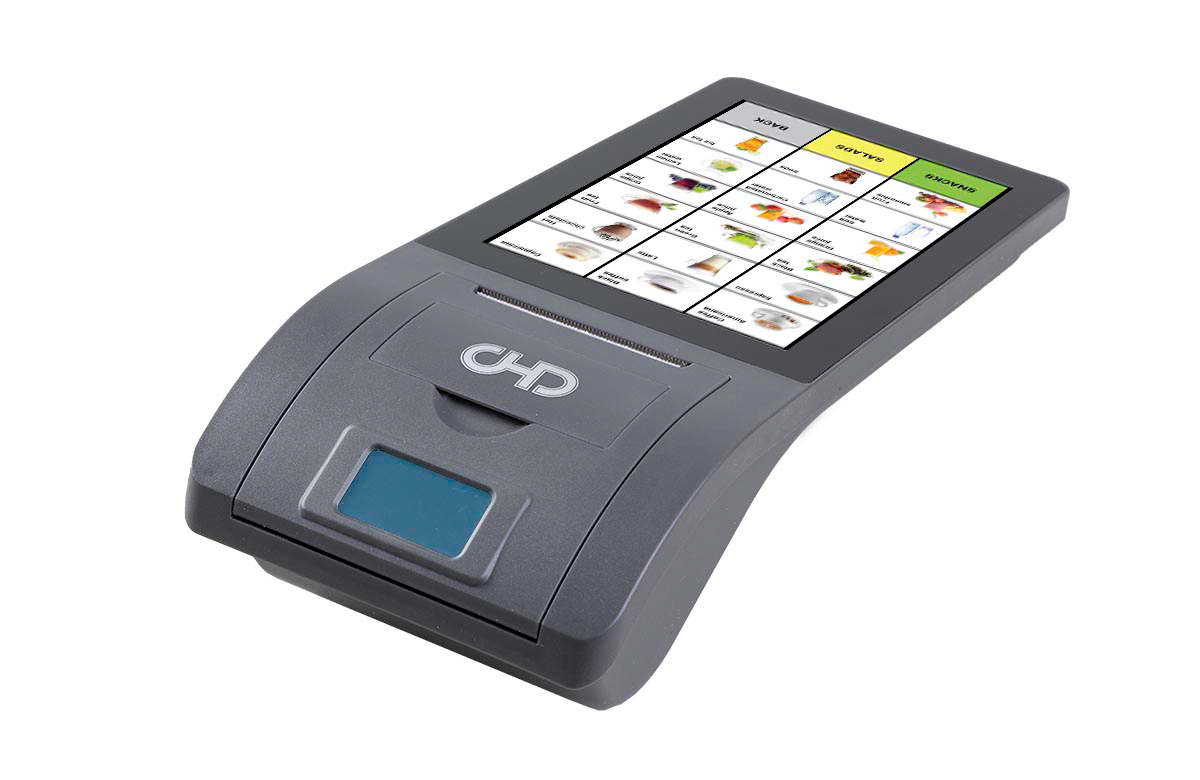

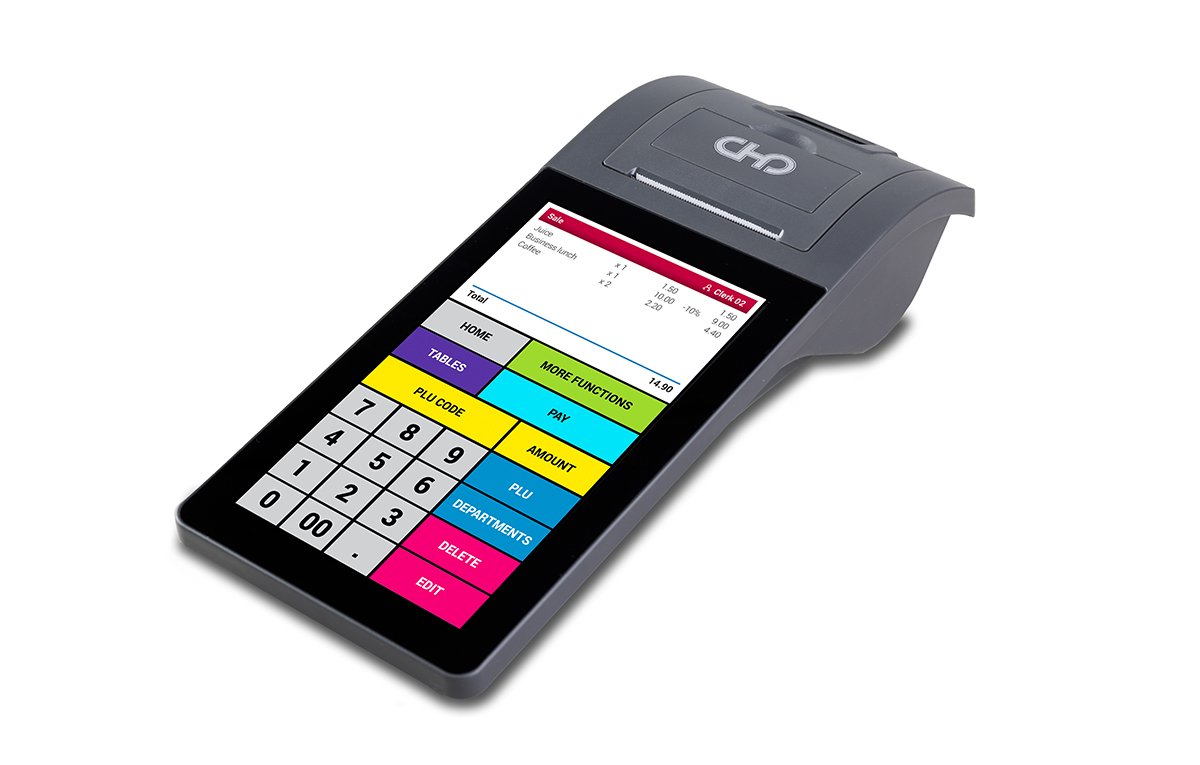

Introducing the CHD 7A, a versatile mobile POS system designed to meet all your needs with its compact and modern design. Slightly larger than the size of your palm, this all-in-one device features a 7" LCD display, an easy-to-load printer with a 50 mm paper roll capacity, a built-in battery, and NFC capabilities. Enhance its functionality with the optional miniPOS cloud sales app, transforming the CHD 7A into a standalone, jet cloud-based sales system reachable from anywhere and anytime.

System
Processor Quad-core ARM Cortex-A55: RK3566
GPU Mali-G52 GPU
Main frequency up to 2.0 GHz
OS Android 11 Red Velvet Cake
RAM 2 GB
Memory eMMC 16GB
SIM yes
Audio Beeper
Wi Fi Wi-Fi 802.11b/g/n/ac (2.4GHz+5GHz)
Bluetooth 5.0
SD slot up to 128 GB
NFC yes
External I / O
USB ports USB-A: 2 x USB HOST; USB type-C: 1 charging, USB UFP (client)
Cash drawer port 1 x RJ11, 9V
Power
Input voltage Integrated battery: 2600mAh
Power adapter Charger: DC 5V 2A USB type-C
Physical parameters
Customer display 1.47" LCD
Operating temperature 0°C to 45°C
Storage temperature -20°C to 70°C
Weight 850g inclusive paper roll and acessories
Dimensions 115 x 68 x 283 mm
Display
Size 7" LCD
Type Capacitive multi-touch screen
Resolution 1024 x 600
Printer
Roll diameter Max 50 mm
Paper width 58 mm
Abrasion resistance 50 km or more
Cutter manual cutter
Software
Sales software miniPOS (Optional)
Cloud solution optional
